CMB.TECH wins first orders for marine DF hydrogen-fuelled gensets

CMB.TECH will provides the hydrogen technology, including the necessary components. The collaboration represents a concrete steps towards the decarbonisation of the maritime industry. DBR offers its expertise in reliable energy solutions for marine and offshore applications, and CMB.TECH focuses specifically on designing and building large marine and industrial applications that run on hydrogen or green ammonia.

The first order for the new H2-fuelled gensets has been placed by Damen Shipyards. Damen has ordered 3 x hydrogen gensets that will be operated on Windcat’s new CSOVs. The first vessel is already under construction at Damen Shipyards and the first dual fuel hydrogen genset will be installed in a separate engine room in the first quarter of 2024.

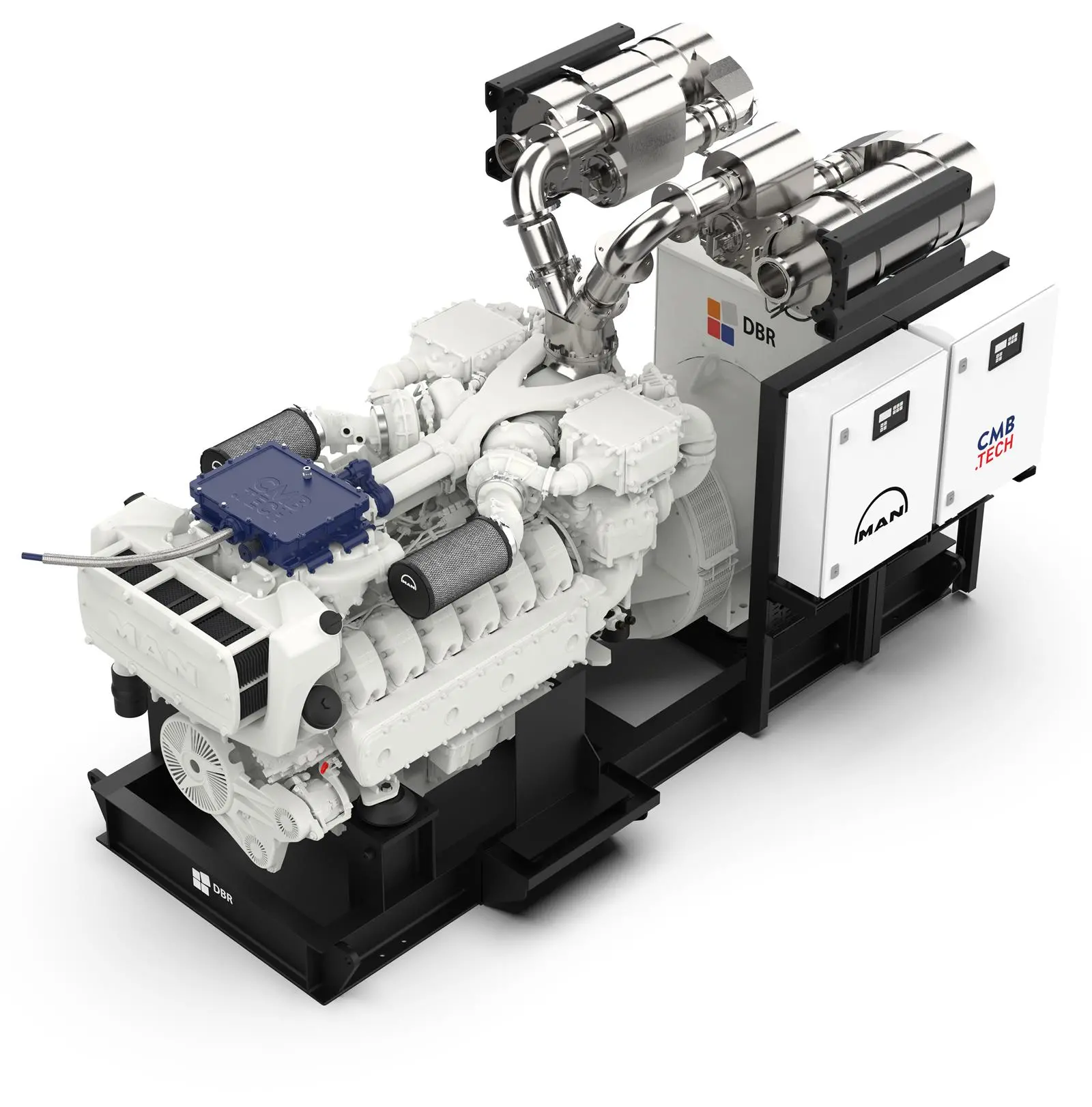

Dual fuel hydrogen genset

The core of the dual fuel hydrogen genset is formed by the proven MAN V12-24 litre engine, which has been successfully used in previous collaborations between CMB.TECH and MAN Energy Solutions. The genset has a maximum output of 940kVA / 752 kWe at 60 Hz (1800 rpm) and can operate on diesel or in dual fuel mode where emission savings of up to 83% can be achieved.

In a typical D2 duty cycle, 53% of diesel consumption and 12% of AdBlue consumption is saved, resulting in a significant reduction in CO₂ emissions. The genset is also available in 50Hz (1500rpm) which can deliver 822kVA of power.

“Decarbonising onboard power generation is a first step in the race towards zero emission shipping. As hybrid technologies are becoming more widely used, the presented dual fuel hydrogen genset can be integrated easily and will be able to offer a flexible and future proof platform to save emission in the maritime industry. Together with our partners, we are looking forward to rolling out this cost-efficient and robust solution on the CSOV fleet of Windcat,” Roy Campe, CTO CMB.TECH commented.

“We find ourselves in a very exciting period in our business. The transition to alternative fuels is in full swing. In collaboration with CMB.TECH, we can offer a great solution that allows our maritime customers to reduce emissions tremendously in one fell swoop. And since the gensets can still operate 100% on diesel, the vessel can also be used when there is no hydrogen available at that moment,” Arwout Verwoerd, Sales marine DBR BV noted.
