AiP for containerised marine H2 system

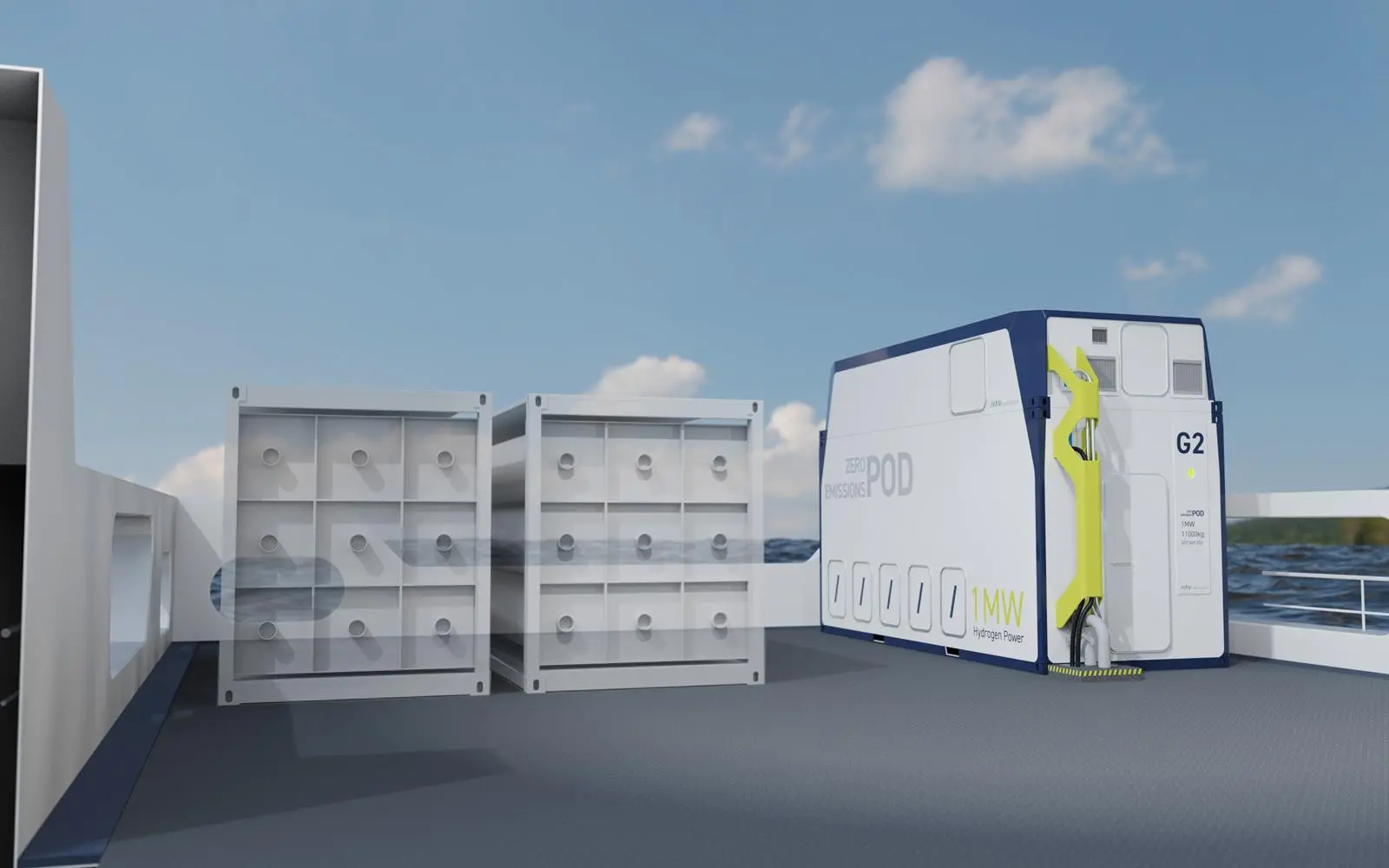

The Zero Emission Pod system is a turnkey, standalone power pod where all support and safety systems as well as electrical power management are included. By using 200kW hydrogen fuel cells, the system is flexible and can easily provide 1,000 kW within the footprint of a standard 20 foot container (teu). By combining multiple containers, using larger modules or dedicated space below deck, multi megawatt energy systems will also be available.

Installed effect can be used for the main propulsion systems, or for additional power supply on board the vessel to comply with green operation standards. The output effect will be dimensioned to provide optimal zero emission power in desired operating situations, sailing patterns and vessel type.

The containerised H2 solution is based on the hydrogen-based energy system developed in the FreeCO2ast project, which has received approval for a maritime hydrogen-based energy system with a liquid hydrogen tank below deck.

The AiP means that the H2 system has been assessed by DNV and found to comply with the current rules of the class society and applicable statutory regulations. Further, it confirms that the design is feasible and that no significant obstacles exist to prevent it from being realized.

The basis for DNV’s AiP is compliance with the safety principles of DNV rules for fuel cell installations, gas fuelled ship installations, containerized systems, the IGF Code, and IMO interim guidelines for the safety of ships using fuel cell power installations.

First deliveries

HAV Hydrogen will be ready to start manufacturing of the Zero Emission Pod H2 containers during the second half of 2023, aiming for the first deliveries in 2024.

As a specialist supplier and integrator of maritime fuel cell solutions, HAV Hydrogen will offer support to shipowners, ship designers and shipyards to ensure an optimal design, integration and installation process.
